weighing scale load cell amplifier DJ04-2 RS485 digital junction box weighing transmitter with modbus for load cell

Digital junction box / weighing transmitter with RS485 output +modbus
The digital junction box is based on resistance strain sensor as signal source, It is composed of 24bits Σ-Δ type A/D conversion technology and The 8 bit single chip microcomputer etc.large-scale integrated circuit. It is with high accuracy, high reliability.
Digital junction box / weighing transmitter Main functions:
¨ panel keyboard settings, capacity calibration
¨ Has function to display weight setting.
¨ Can point out failures, operational error.
¨ RS485 output,Can set the corresponding weight value of 4mA and 20mA.

2. Main Technical Parameters of  Digital junction box / weighing transmitter

¨ 2.1 A/D sampling rate:  7.5 Times/s~240Times/s optional
¨ 2.2 Internal resolution:  24bits
¨ 2.3 Non-linearity:  ≤0.005%F.S
¨ 2.4 Zero drift:  ≤0.2μV
¨ 2.5 Temperature coefficient of capacity:   ≤10ppm/
¨ 2.6 Net input signal range of full capacity:   2~20mV
¨ 2.7 Initial weight signal range: -1~+9mV
¨ 2.8 Analog input signal sensitivity:0.5uV /d(Minimum)
          1.5uV/d(Recommended)
¨ 2.9 Zeroing range: 100%FS
¨ 2.11 Display: 6 red LED digital tubes(height of word is 14mm
¨ 2.14 Amibent temperature of operation: -5~ 45
¨ 2.15 Relative humidity: <= 90%(Non condensing)
¨ 2.16 Power supply: +18 ~ +26 VDC,0.5A
2.17 Sensor bridge excitation: DC 5V,can connect 6 load cells of 350 ohms or 12 load cells of 750 ohms.
Packaging details

• Unit Type: piece
• Package Weight: 1.000kg (2.20lb.)
• Package Size: 5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)

Load cell amplifier weight transmitter

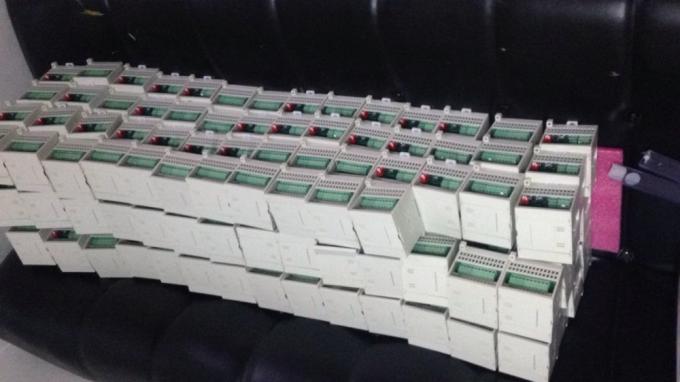

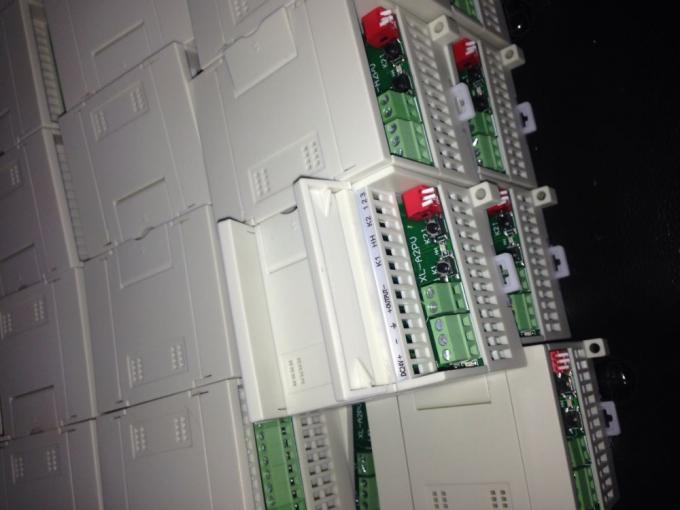

Load cell amplifier IN-A2PS

Replace ANYLOAD A2P Load Cell Amplifier,Replace ANYLOAD A2P Load Cell Amplifierhttp://www.china-industrymart.com/load-cell-amplifier-weight-transmitter_p0203.html analogue load cell amplifier, load cell amplifier,
strain gage amplifier, strain gauge amplifier

Built-in 24 bits Σ-Δ integrated ADC chip for weighing conversion;
Full digital conversion, no potentiometer or any other analog conditioning components;
Analog output two-button calibration, it only needs calibrate once of zero and full.
1 Accuracy: 1/10000
2 Non-linearity: ≤0.008%F.S
3 Zero temperature drift: ≤0.4μV/℃
4 Temperature coefficient of span: ≤10ppm/℃
5 Net input range of full capacity: -30 mV ~ +30mV
6 Sensitivity of analog input signal: 0.5uV /d (Min.)
1.5uV/d (Recommend)
7 Calibration range: +- 50%FS
8 Display: No display
9 Working temperature: -30℃~ 60℃
10 Relative humidity: ≤ 90%(No condensation)
11 Power supply: +18 ~ +26VDC,>0.5A
12Load cell bridge voltage: DC 5V 1.5A Can max connect with 8 pieces of load cells whose impedance > 350Ω
13 Output optional: 0~5V,0~10V,4~20mA(DIP switch selection)

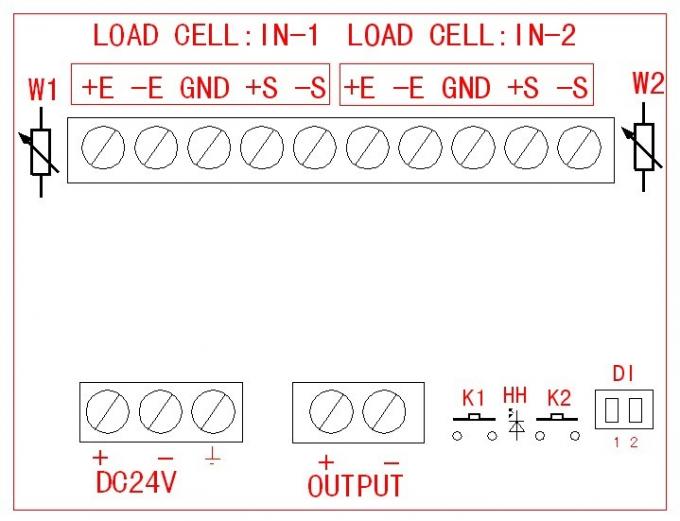

Wiring:


+E: load cell power supply +
-E: load cell power supply -
GND: shield
+S: feedback signal +
-S: Feedback signal -

Weighing indicator IN-650D

Weighing indicator IN-650D

Interchangeable with

INDICATOR OF PT650D

weighing indicator Especially for batching scale

main features:

¨ The panel keyboard is available for setting parameters and calibration span.

¨ Functions of displaying weight and zero setting

¨ Reminding for instrument failure and errors in operation

¨ 4~20mA analog output,it is available to set the corresponding weight of current output of 0mA and 20mA.

¨ The fixed value of low,median and high can control output and be available to set respective control value and buffer value arbitrarily.

¨ RS232 output

-weighing indicator Especially for batching scale

Main Technical Parameters

¨ 2.1 A/D sampling rate:  7.5 Times/s~240Times/s optional

¨ 2.2 Internal resolution:  24bits

¨ 2.3 Non-linearity:  ≤0.005%F.S

¨ 2.4 Zero drift:  ≤0.2μV/℃

¨ 2.5 Temperature coefficient of capacity:   ≤10ppm/℃

¨ 2.6 Net input signal range of full capacity:   2~20mV

¨ 2.7 Initial weight signal range: -1~+9mV

¨ 2.8 Analog input signal sensitivity:0.5uV /d(Minimum)

          1.5uV/d(Recommended)

¨ 2.9 Zeroing range: 100%FS

¨ 2.11 Display: 6 red LED digital tubes(height of word is 14mm

¨ 2.14 Amibent temperature of operation: -5℃~ 45℃

¨ 2.15 Relative humidity: ≯ 90%(Non condensing)

¨ 2.16 Power supply: +18 ~ +24 VDC,0.5A

2.17 Sensor bridge excitation: DC 5V,avaiable to connect 4 load cells of 350 ohms or 12 load cells of 750 ohms.

EXPLOSION-PROOF WEIGHT INDICATOR

EXPLOSION-PROOF WEIGHING INDICATOR-100XD

Suitable for weighing in explosion-proof area 2. especially used in industrial of chemical and medicine.

Exprosion proof class: ExdⅡBT

* aluminum shell weight indicator

* A/D resolution:800000

* Display resolution:30000

* A/D transfer ratio: 80times/s.

* Exitation power supply for load cell:+5VDC,max.power 10mA.

* can drive 4 load cell of 350Ω

* Temperature effect on zero:≤0.15μV/℃

* Temperature effect on output:≤10μV/℃

* non-linearity:≤0.01%F&#8226;S

* Power supply: input voltage:220VAC(-15%～+10%)/50Hz

        output voltage:9V/800mA

* size:285×260×160(length*width*heighth)mm

* RS232C interface

* RS485 interface (available)

4-20MA output

Weighing indicator for truck scale-IN-B10E

weighing indicator for truck scale IN-B10E

main features:

◆ Ac and DC Power, when equipped with 6 v battery, without the ac power input can also weigh and print as normal

◆ Options for automatic zero or memory start when starting up it

◆ Automatic zero point tracking

◆ Under load alarming and overload warning

◆ Calibration of capacity with keyboard

◆ Non-linearity calibration, automatic dividing value switching

◆ Date, time, truck No., cargo No. setting

◆ Real-time calendar clock, with power-off protection

◆ With weighing situation of truck scale and platform scale. In truck scale weighing state, with single weight mode, double weight mode and pure weight mode, three kinds of weight modes. In platform scale weighing state, with automatic work mode and manual work mode

◆ 500 complete weighing data saving, preset tare weight of 400 different truck No.

◆ Check and print according to the weighing date,,truck No, cargo No.,or serial No.

◆ With micro printer, print demo,various weighing statements and preset tare weight tables, etc, can program the content of weight demo

◆ External line printer, optional vertical and horizontal printing demo list, various weighing statements and preset tare weighing tables, etc

◆ With interface of BCD code,can be connected to large screen display

◆ With function of RS232C and RS485,can be connected to a computer and composed a microcomputer weighing system

weighing indicator for truck scale

Main Technical Parameters

2.1 A/D sampling rate:     7.5 Times/s~60Times/s optional

2.2 Accuracy class:        Ⅲ,n=3000

2.3 Net input signal range of full capacity: 2~15mV

2.4 Initial weight signal range:           -1~+9mV

2.5 zero setting range: ±4%FS,±10%FS,±20%FS,±50%FS optional

2.6 Service temperature range:          0~ 40℃

2.7 Relative humidity:    ≯ 90%(Non condensing)

2.8 Power supply:   AC 220V(–15%~ +10%)  50Hz±2%

2.9 Sensor bridge excitation:        DC 5V , can connect 8 load cells of not less than 800W

2.10 Equipped battery:               6V/4AH

2.11DC insulation:                      > 5 M W

2.12Voltage-endurance:   AC 1500V(without breakdown in one minute)

2.13AC leakage current of power frequency: < 3.5 mA

2.14Outside dimension:            325mm ´210mm ´180mm

2.15 Weight:                    3.2 kg

2.16Power consumption:          < 15W

weighing indicator for truck scale

Digital weight indicator for truck scale

   DX05 DIGITAL WEIGHING TERMINAL

                         ---Best Choice for Truck Scale, Floor Scale, Axle load scale, etc.



1. Description

DX05 is a digital weighing terminal, which has stable quality, powerful function and easy operation. It can be connected to various types of load cell. If DX05 – A/D module has been installed. With the industry-leading auto addressing technology and auto correction angle technology, DX05 facilitate users to debug more easily.

1. Application

Best choice for Truck scale and Floor scale, Axle load scale, etc.

1. Reliability

100-260V, wide range of input voltage, high efficiency switching power supply;

Short circuit and overload protection in the input connector of the load cell

Built-in battery has a constant current and voltage float, have over-discharge protection, ensure the battery life of 3-5 years;

Serial data interface with ESD protection

The communication of digital load cell adopt two-password protected, has strong anti-cheating function.

Can be connected to infrared to prevent cheating by press the side (optional);

1. Accuracy

Having a second stage digital filter;

Optional dynamic filter, can quickly and accurately weigh the shake things like animals or other living creatures;

With non-linearity correction of 15 point;

Has function of Compensation on very weak slowly varying signals (eg. Due to temperature, creep);

High-precision 24-bit conversion;

1. Easy Operation

Unique F key operation, easy to understand, easy to operate;

Original wireless debugger, greatly facilitates debugging, testing, encryption and so on;

Zero direct zero calibration, with compensation calibration;

Axle deviation automatic correction, automatic corner compensation’

Digital load cells automatic addressing(networking);

1. Multi-function

Unique personalized printing;

Automatic capacity switching, big capacity scale can also accurately weigh small thing;

Powerful communications features, choose Dingsong protocol or 20 kinds of continuous communication protocols from various indicators in the industry; you can also choose a standard MODBUS RTU protocol;

Big screen with isolated current loop communication signals, reliable and long distance;

Can achieve one scale with two indicators;

With Axle-weight cumulative function;

Powerful data storage, check, print, statistical functions, and accurate real-time clock;

Dynamic weighing, and has superior accuracy of dynamic measurement, achieve dual-use n dynamic and static weighing.

Weight indicator for platform scale Yaohua T6

weight indicator-Yaohua T6

This pcb for weight indicator -YAOHUA YH-T6

Weighing indicator XK3190-T6 is widely applied in electronic platform scale, electronic floor scale and so on alike static weighing system equipped with 1~4 load cell.

Feature:
Low energy consumption design,wide voltage input
High precision Σ-Δ conversion,high PPR
Typical function, easy operation
AC/DC(built in rechargeable battery 6V/4AH) power supply , Auto power off at low battery

Standard function:

Weight accumulation/accumulation display/accumulation clear function

Kg/Lb swith,saving power mode
 RS232 interface(optional)

Technicals:

Input signal range: -16mV~18mV

Load cell excitation: DC 3V
Max. connection number of load cell: 4 at 350 ohm
Load cell connection mode: 4 wire
Verified counts: 3000
Display: 6 bits LED, 6 status indications
Display range: -99990~99990
Power supply:AC 85-265V;50-60Hz; DC built-in rechargeable 4V/4.5Ah battery

HEAT-PROOF WIRELESS CRANE SCALE OCS-HP03

HEAT-PROOF WIRELESS CRANE SCALE OCS-HP03

HEAT-PROOF WIRELESS CRANE SCALE OCS-HP03

FEATURES:

*HIGH QUALITY ALLOY STEEL LOAD CELL

*WHOLE STEEL CHROMEPLATED ENCLOSURE

*HIGH-DUTY BOW SHACKLE

*HIGH-DUTY EYE HOOK

*REMOVABLE RECHARGEABLE BATTERY

*TYPES OF INDICATOR AVAILABLE

*CAPACITY: 1000KG~10000KG

ROTARY WIRELESS CRANE SCALE-HRT02

*HIGH QUALITY ALLOY STEEL LOAD CELL

*WHOLE STEEL CHROMEPLATED ENCLOSURE

*HIGH-DUTY FIXED SHACKLE

*HIGH-DUTYROTATABLE HOOK

*REMOVABLE RECHARGEABLE BATTERY

*OPTIONAL INDICATORS

*CAPACITY: 100KG~5000KG

Crane scale-OCS-TY

Crane scale-OCS-TY

For more information please contact via:
Email: sales3@innovation-electronic.com

Website:www.innovation-electronic.com
Whatsapp: +86 18758163948
Skype: innovationcarly
Wechat: inno-elec

Digital weighing transmitter-A2P+

Digital weighing transmitter-A2P+

digital weighing transmitter-A2P+

main function:

¨ use panel to set parameters and calibrate.

¨ display weight and zero function

¨ error alarm for wrong operation and indicator error.

¨ 4~20mA output, can set the weight value of 4mA and 20mA

¨ low, medium and high fixed value control output, can arbitrarily each control value and buffer value.

¨ RS232. RS485

2. Technical data

2.1 A/D sampling rate: 7.5 times/s~240times/s available

2.2 inner resolution ratio: 24bits

2.3 non-linearity: ≤0.005%F.S

2.4 Temperature effect on zero: ≤0.2μV/℃

2.5 Temperature effect on output: ≤10ppm/℃

2.6 input signal range of the full capacity : 2~20mV

2.7  initial weight signal range:  -1~+9mV

2.8 output of input signal 0.5uV /d(min.)

1.5uV/d(advise)

2.9 zero range: 100%FS

2.11 display: 6 red digits (character heighth 14mm)

2.14 working environment temperature: -5℃~ 45℃

2.15 Humidity  ≯ 90%(no condensation)

2.16 Power supply: +18 ~ +24 VDC,0.5A

Weight indicator for platform scale Yaohua T6

Weight indicator for platform scale Yaohua T6

This pcb for weight indicator -YAOHUA YH-T6

Weighing indicator XK3190-T6 is widely applied in electronic platform scale, electronic floor scale and so on alike static weighing system equipped with 1~4 load cell.

Feature:
Low energy consumption design,wide voltage input
High precision Σ-Δ conversion,high PPR
Typical function, easy operation
AC/DC(built in rechargeable battery 6V/4AH) power supply , Auto power off at low battery

Standard function:

Weight accumulation/accumulation display/accumulation clear function

Kg/Lb swith,saving power mode
 RS232 interface(optional)

Technicals:

Input signal range: -16mV~18mV

Load cell excitation: DC 3V
Max. connection number of load cell: 4 at 350 ohm
Load cell connection mode: 4 wire
Verified counts: 3000
Display: 6 bits LED, 6 status indications
Display range: -99990~99990
Power supply:AC 85-265V;50-60Hz; DC built-in rechargeable 4V/4.5Ah battery

MOUNTING FOOT FOR LOAD CELL

Weight transmitter-ARS

Weight transmitter-ARS

weight transmitter-ARS

Input: one analog load cell

output: RS485/RS232/4-20mA

Digital junction box-DJ04-2 with modbus

Digital junction box-DJ04-2 with modbus

Digital junction box with RS485 output +modbus

The digital junction box is based on resistance strain sensor as signal source, It is composed of 24bits Σ-Δ type A/D conversion technology and The 8 bit single chip microcomputer etc.large-scale integrated circuit. It is with high accuracy, high reliability.

Main functions:

¨ panel keyboard settings, capacity calibration

¨ Has function to display weight setting.

¨ Can point out failures, operational error.

¨ RS485 output,Can set the corresponding weight value of 4mA and 20mA.

2. Main Technical Parameters

¨ 2.1 A/D sampling rate:  7.5 Times/s~240Times/s optional

¨ 2.2 Internal resolution:  24bits

¨ 2.3 Non-linearity:  ≤0.005%F.S

¨ 2.4 Zero drift:  ≤0.2μV/℃

¨ 2.5 Temperature coefficient of capacity:   ≤10ppm/℃

¨ 2.6 Net input signal range of full capacity:   2~20mV

¨ 2.7 Initial weight signal range: -1~+9mV

¨ 2.8 Analog input signal sensitivity:0.5uV /d(Minimum)

          1.5uV/d(Recommended)

¨ 2.9 Zeroing range: 100%FS

¨ 2.11 Display: 6 red LED digital tubes(height of word is 14mm

¨ 2.14 Amibent temperature of operation: -5℃~ 45℃

¨ 2.15 Relative humidity: ≯ 90%(Non condensing)

¨ 2.16 Power supply: +18 ~ +26 VDC,0.5A

2.17 Sensor bridge excitation: DC 5V,can connect 6 load cells of 350 ohms or 12 load cells of 750 ohms.

Weight transmitter module-ARS-u

Weight transmitter module-ARS-u

Input: one analog load cell

output: RS485/RS232/4-20mA MODBUS-RTU AVAILABLE

IN-C16D digital column load cell for truck scale

Column load cell

Suitable for truck scale

Stable quality in the long term.

Interchangeable with HBM LOAD CELL MODEL C16

Output: RS485, Modbus available.





weighing sensor IN-L6H5 load cell single point load cell for packing scale aluminum weighing scale sensor

single point load cell IN-L6H5

Aluminum

High precision

Suitable for electronic pricing scale, electronic package

scale and other electronic weighing devices

Interchangeable with Zemic L6H5

Bench scale -IN-FL012

Bench scale  For weighing cargoes with a few dozen kilograms to several hundreds of kilograms
In accordance with the use of different occasions ,consumption levels and appearance structures, there are various kinds of Bench scale
Differentiated by the structure of scale body:  rectangular pipe welded structure, ,the round pipe welded structure, pressing structure,  aluminum die-casting structure
Differentiated by the material of platform(cover) :stainless steel 304,  stainless steel 201, carbon steel scale body powder-coated, carbon steel painting
Differentiated by the personalized needs of users: ordinary weight bench scale, counting bench scale, price computing bench scale
Other description:
Platform size: 300mmX300mm～800mmX1000mm
60Kg～1000Kg
Function:  zero, tare, ,zero-tracking, overloading indication, ,AC-DC dual power
accuracy class: Grade III
The scale can be OEM and ODM manufactured according to the customer’s requirement.

Weighing indicator for truck scale-IN-B10E

weighing indicator for truck scale IN-B10E

main features:

◆ Ac and DC Power, when equipped with 6 v battery, without the ac power input can also weigh and print as normal

◆ Options for automatic zero or memory start when starting up it

◆ Automatic zero point tracking

◆ Under load alarming and overload warning

◆ Calibration of capacity with keyboard

◆ Non-linearity calibration, automatic dividing value switching

◆ Date, time, truck No., cargo No. setting

◆ Real-time calendar clock, with power-off protection

◆ With weighing situation of truck scale and platform scale. In truck scale weighing state, with single weight mode, double weight mode and pure weight mode, three kinds of weight modes. In platform scale weighing state, with automatic work mode and manual work mode

◆ 500 complete weighing data saving, preset tare weight of 400 different truck No.

◆ Check and print according to the weighing date,,truck No, cargo No.,or serial No.

◆ With micro printer, print demo,various weighing statements and preset tare weight tables, etc, can program the content of weight demo

◆ External line printer, optional vertical and horizontal printing demo list, various weighing statements and preset tare weighing tables, etc

◆ With interface of BCD code,can be connected to large screen display

◆ With function of RS232C and RS485,can be connected to a computer and composed a microcomputer weighing system

weighing indicator for truck scale

Main Technical Parameters

2.1 A/D sampling rate:     7.5 Times/s~60Times/s optional

2.2 Accuracy class:        Ⅲ,n=3000

2.3 Net input signal range of full capacity: 2~15mV

2.4 Initial weight signal range:           -1~+9mV

2.5 zero setting range: ±4%FS,±10%FS,±20%FS,±50%FS optional

2.6 Service temperature range:          0~ 40℃

2.7 Relative humidity:    ≯ 90%(Non condensing)

2.8 Power supply:   AC 220V(–15%~ +10%)  50Hz±2%

2.9 Sensor bridge excitation:        DC 5V , can connect 8 load cells of not less than 800W

2.10 Equipped battery:               6V/4AH

2.11DC insulation:                      > 5 M W

2.12Voltage-endurance:   AC 1500V(without breakdown in one minute)

2.13AC leakage current of power frequency: < 3.5 mA

2.14Outside dimension:            325mm ´210mm ´180mm

2.15 Weight:                    3.2 kg

2.16Power consumption:          < 15W

weighing indicator for truck scale
