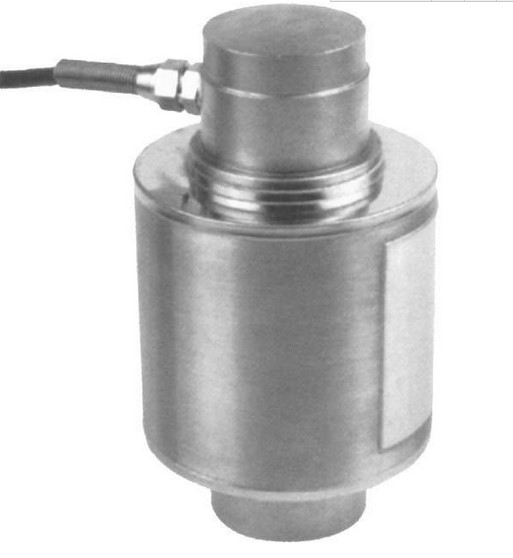

COMPRESSION LOAD CELL IN-RC3



Specifications of  IN-RC3 COMPRESSION LOAD CELL : +Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht

Item	Unit	Parameter
Accuracy class to OIML R60		C2	C3
Rated capacity (Emax)		5,10,20,30
Minimum LC verification interval (Vmin)	%ofEmax	0.0200	0.0100
Sensitivity (Cn) I Zero balance	mV/V	2.0±0.002/0±0.02
Temperature effect on zero balance (TKo)	% ofCn/10K	± 0.02	± 0.0170
Temperature effect on sensitivity (TKc)	% ofCn/10K	± 0.02	± 0.0170
Hysteresis error (dhy)	%ofCn	± 0.0270	± 0.0180
Non-linearity(dlin)	%ofCn	±0.0250	± 0.0167
Cep(dcr) over 30 min.	%ofCn	± 0.030	± 0.0167
Input (RLC) &Output resistance (Ro)		IN-RC3:400±10&352±3 IN-RC3Y:700 ±20 &706 ±7
Nominal range of excitation voltage (Bu)	V	5---15
Insulation resistance (Ris) at 50Vdc	MQ	>=5000
Service temperature range (Btu)	ºC	-30...+70
Safe load limit (EL) & Breaking 10ad(Ed)	%ofEmax	150 &250
Protection class according to EN 60 529 (IEC 529)		IP68
Material :Measuring element+housing		Stainless or alloy steel +Stainless steel

Maximum capacity(Emax)		5t	10t	20t	30t
Min. scale verification (emin) according to EN45501[...#=max. Number of load cells]	kg	2 [4#]	5 [6#]	5 [6#]	10 [10#]
Deflection at Emax (snom) ,approx	mm	0.55	0.55	0.65	0.75
Weight(G) ,approx	kg	1.8	1.9	2.1	2.3
Cable : Diameter: Ø 6mm Length	m	8	10	12	15
