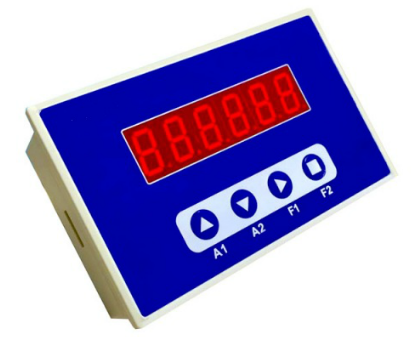

Weighing Controller IN-420PLUS
Interchangeable With
INDICATOR OF ATRAX 420 PLUS
Weight Controller FUNCTION:
• Auto zero scale • Auto zero tracking • Normal weighing
• Peak • Counting • Zero scale • Gross/Net
• Tare • RS-232C • RS-485 • Print interface (PS805 Printer)
• Tare • RS-232C • RS-485 • Print interface (PS805 Printer)
Has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles
per second and drives up to eight 350Ω or sixteen 700Ω load cells.
With a SS304 stainless steel wash down enclosure is ideal for the food industry, agricultural industry, and industrial applications
and COMPLY WITH STANDARD OF NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000.
- COMPLY WITH STANDARD OF NTEP III/IIIL, 10 000
- COMPLY WITH STANDARD OF Measurement Canada III, 10 000; III HD 20 000
- Material: Stainless steel SS304
- IP Rating: IP66
- LED 6-digit display
- Power Supply: AC adaptor, 100-240VAC, 50-60Hz
- Parameter and calibration settings are performed on the front panel
- LABRADOR computer software for parameter and calibration settings
- Units of Measurement: kg, lb
- Improper operation and fault indication
- Two way relay signal output
- Equipped with RS-232 and RS-485 connecting ports
- Print functions with programmable print format
- Built-in clock
Weight Controlloer Data
